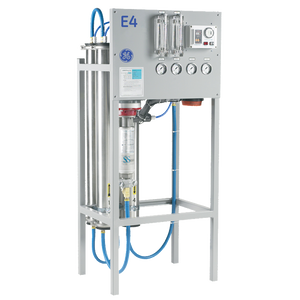

Reverse Osmosis Machine 2,200 to 13,200 gallons per day
When you mention reverse osmosis (RO), GE Water & Process Technologies is the first name to come to mind. Our E-series RO machines are designed for durable operation, high quality product water production, easy installation and straight-forward control.
Typical Applications:
- Process ingredient water
- Rinse water
- Food ingredient water
- Safe drinking water
- Boiler feed water
- Ion exchange pre-treatment
Standard Economy Features (ECN):
- 1-micron pre-filter
- Automatic inlet shut-off valve
- Permeate and Concentrate flow meters
- Remote machine on/off capability
- Thermal Motor Protection
- Pre-filter, post-filter, primary, and final pressure gauges
- Flow control center including concentrate and recycle valves
Deluxe (DLX) Features – in addition to ECN features:
- Autoflush system
- Low inlet pressure switch
- Digital conductivity meter with programmable relay
- Alarms: Low Inlet Pressure, Motor Starter overload
Recovery Range | 50-75% |
Permeate Rate Range gpm (m3/hr) | 1.5(0.3) to 9(2.1) |
Concentrate Rate gpm (m3/hr) | 0.5(0.1) to 9(2.1) |
Pump | Tonkaflo |
Pump Type | Multi-stage, centrifugal |
Motor | 3-phase, TEFC, 208-230/460 VAC |
Operating Pressure | 220 psig |
Maximum Recovery | 75% |
Nominal Rejection | 95-98% |
Operating Temperature | 55-85°F |
Minimum Inlet Pressure | 30 psig |
Design Temperature | 77°F |
