Domed Lenticular Filter Housings (filter modules)

Domed Lenticular Filter Housings (filter modules)

Regular price $5,535.00

SHARE THE LOVE

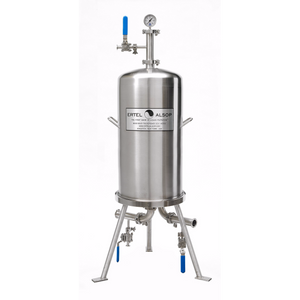

The ErtelAlsop domed filter housings consists of a highly polished filter housing with sanitary fittings, vent connection and no internal threads. This model is provided in 316L stainless steel as standard and allows for easy cleaning after complete disassembly.

Since Pak Filter cartridges are comprised of the same filter media used in Filter Press filtration, existing process specifications can easily be translated from Filter Press to lenticular filter cartridge format. This provides a totally enclosed, operator friendly depth filtration system.

The ErtelAlsop Pak cartridge design also allows for quick change out times, so down time is minimal as compared to other means of filtration.  In addition, the simple quarter-turn lock, and static core structure of the ErtelAlsop filter cartridge eliminates the concerns of misalignment or sealing between flat gasket cartridge style systems.

With its totally enclosed design, Lenticular Filter Housings are the perfect alternative to the Filter Press filter press.

Standard Features

  • T-316L stainless steel with 180 grit finish
  • 1.5” Sanitary tri-clamp Inlet & Outlet with 90 deg elbows
  • 0-60 psi stainless steel non-sanitary gauge
  • V-Band Clamp Closure
  • 60 PSIG
  • EPDM Elastomers/Gaskets
  • Non-Adjustable Legs with foot pads
  • Top Vent

Optional Features

  • Bottom Drains
  • Pumps
  • Tubing
Specs. 12 inch 16 inch
Material of Construction 316 Stainless Steel 316 Stainless Steel
Gasket Material EPDM EPDM
Standard Height 981 mm (38.6 in) 981 mm (38.6 in)
Standard Width – Base 485 mm (19.1 in) 587 mm (23.1 in)
Standard Width – Dome 324 mm (12.75 in) 425 mm (16.75 in)
Weight – Empty 34.1 kg (75 lbs) 55.3 kg (122 lbs)
Volume – Empty 29.7 l3 (1,809 in3) 51.9 l3 (3,166 in3)
Volume with Pak Cartridge 20 l3 (1,222 in3) 33.3 l3 (2,032 in3)
Media Diameter 305 mm (12 in) 406 mm (16 in)
Number of Cells per Pak 16 16
Filter Area 1.72 m2 (18.5 ft2) 1.72 m2 (39.5 ft2)
Average Flow Rate 3.79 l/m2 (1 gpm/ft2) 3.79 l/m2 (1 gpm/ft2)
*Based on a 1 high filter housing. Refer to our tech sheets for further information
**All dimensions are for reference only.
